CPA稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器
產品品牌：英國LCMsystems（LOADCELL）
產品類別：柱式稱重傳感器
產品系列：LCM CPA系列稱重傳感器
產品價格：電議或面議
產品描述：在LCM系列壓縮稱重傳感器是專為一般用途，適用于實驗室或永久性室外安裝使用。
The LCM series of Compression Load Cells are designed for general use and are suitable for use in laboratories or in permanent outdoor installations.
該CPA系列是內置按照嚴格的標準，適用于暴露的安裝使用，具有版本可供進行充分浸泡在水中。有許多特殊的選項，先前已提供的，包括拱形頂部（帶或不帶負載帽提供），積分提手，安裝底座集成連接器和內部模擬/數字信號放大器。該標準的產品是由不銹鋼制成。
The CPA series are built to exacting standards and are suitable for use in exposed installations, with versions being available for full immersion in water. There are many special options, which have been previously supplied, including, domed top (supplied with or without loading cap), integral carry handles, mounting base integral connectors, and internal analogue/digital signal amplifiers. The standard product is constructed from stainless steel.
英國LCMsystems CPA稱重傳感器技術參數
|
Rated Load (tonne)
|
2, 5, 10, 25, 50, 100, 200, 300, 500, 750, 1000
|
|
Proof Load
|
150% of Rated Load
|
|
Ultimate Breaking Load
|
>300% of Rated Load
|
|
Output
|
1.5 mV/V at Rated Load (nominal)
|
|
Non-Linearity
|
<±0.25% of Rated Load (typically)
|
|
Non-Repeatability
|
<±0.04% of Rated Load
|
|
Excitation Voltage
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance
|
700Ω (2-50tonne), 1400Ω (100-1000tonne)
|
|
Insulation Resistance
|
>500MΩ @ 500vdc
|
|
Operating Temperature Range
|
-20 to +70°C
|
|
Compensated Temperature Range
|
-10 to +50°C
|
|
Zero Temperature Coefficient
|
<±0.010% of Rated Load/°C
|
|
Span Temperature Coefficient
|
<±0.010% of Rated Load/°C
|
|
Environmental Protection Level
|
IP67
|
|
Wiring Connections:
|
|
Red +ve supply
|
Blue -ve supply
|
|
Green +ve signal
|
Yellow - -ve signal
|
|
|
Options Available
|
Special ranges and sizes available
Special electrical connections
Integral signal conditioning
Submersible versions available
Domed Top/Loading Cap option
Verification Standard versions available
Mounting Base
|

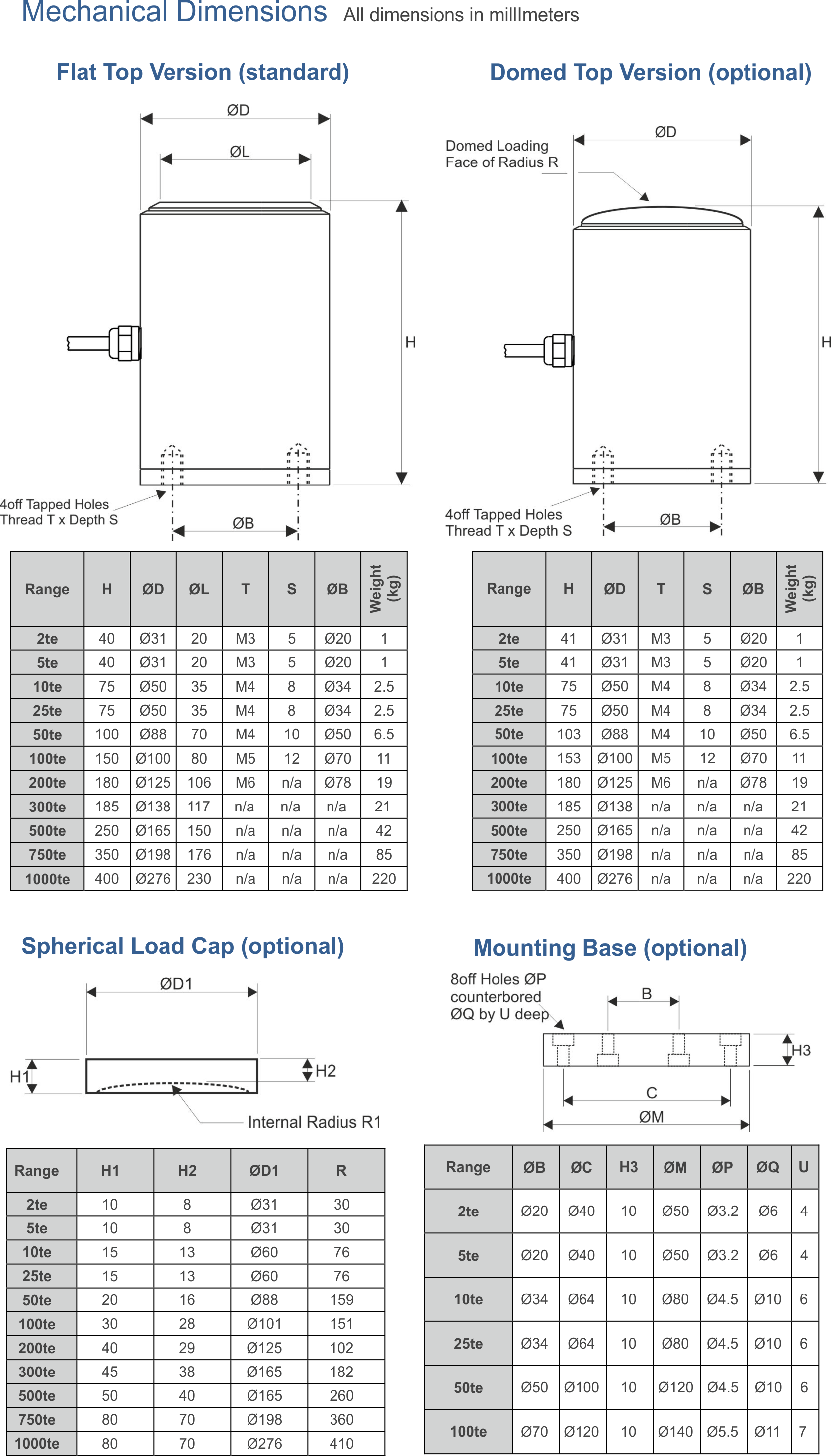

英國LCMsystems CPA稱重傳感器安裝尺寸
